Browser Performance Testing (PREMIUM ALL)
If your application offers a web interface and you're using GitLab CI/CD, you can quickly determine the rendering performance impact of pending code changes in the browser.
NOTE: You can automate this feature in your applications by using Auto DevOps.
GitLab uses Sitespeed.io, a free and open source
tool, for measuring the rendering performance of web sites. The
Sitespeed plugin that GitLab built outputs
the performance score for each page analyzed in a file called
this data can be shown on Merge Requests.
Consider the following workflow:
- A member of the marketing team is attempting to track engagement by adding a new tool.
- With browser performance metrics, they see how their changes are impacting the usability of the page for end users.
- The metrics show that after their changes, the performance score of the page has gone down.
<head>, which affects loading page speed.
- They ask for help from a front end developer, who sets the library to load asynchronously.
- The frontend developer approves the merge request, and authorizes its deployment to production.
How browser performance testing works
First, define a job in your
.gitlab-ci.yml file that generates the
Browser Performance report artifact.

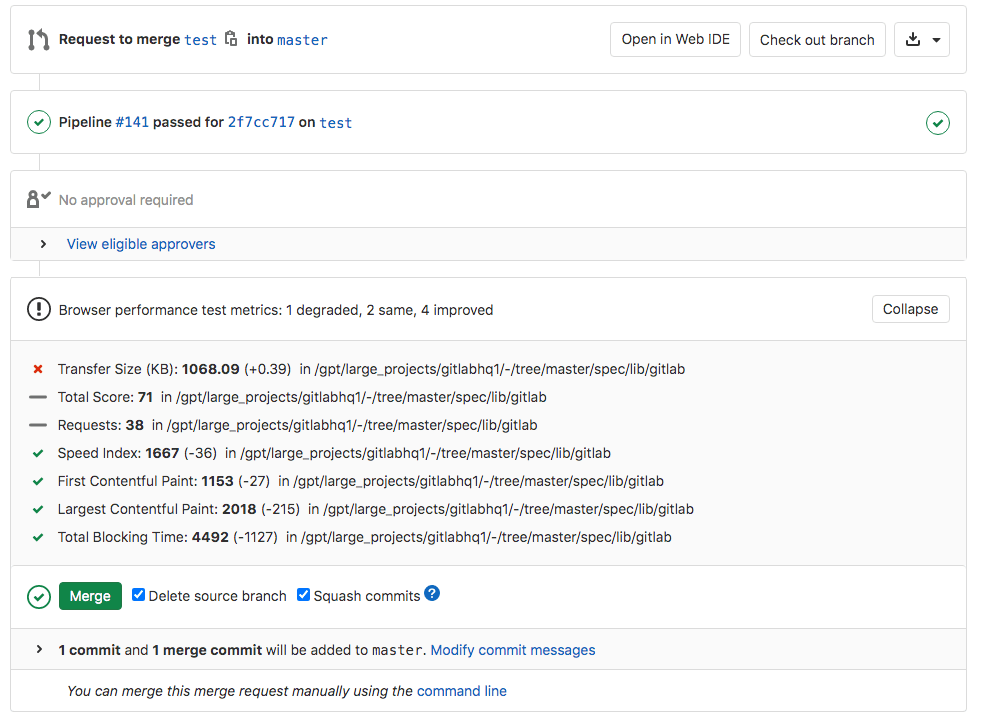

GitLab then checks this report, compares key performance metrics for each page
between the source and target branches, and shows the information in the merge request.
For an example Browser Performance job, see Configuring Browser Performance Testing.
If the Browser Performance report has no data to compare, such as when you add the
Browser Performance job in your
.gitlab-ci.yml for the very first time,
the Browser Performance report widget doesn't display. It must have run at least
once on the target branch (
main, for example), before it displays in a
merge request targeting that branch.
Configuring Browser Performance Testing
Support for the
SITESPEED_DOCKER_OPTIONSvariable introduced in GitLab 16.6.
First, set up GitLab Runner with a Docker-in-Docker build.
Configure the default Browser Performance Testing CI/CD job as follows in your
include: template: Verify/Browser-Performance.gitlab-ci.yml browser_performance: variables: URL: https://example.com
The above example:
- Creates a
browser_performancejob in your CI/CD pipeline and runs sitespeed.io against the webpage you defined in
URLto gather key metrics.
- Uses a template that doesn't work with Kubernetes clusters. If you are using a Kubernetes cluster,
The template uses the GitLab plugin for sitespeed.io, and it saves the full HTML sitespeed.io report as a Browser Performance report artifact that you can later download and analyze. This implementation always takes the latest Browser Performance artifact available. If GitLab Pages is enabled, you can view the report directly in your browser.
You can also customize the jobs with CI/CD variables:
SITESPEED_IMAGE: Configure the Docker image to use for the job (default
sitespeedio/sitespeed.io), but not the image version.
SITESPEED_VERSION: Configure the version of the Docker image to use for the job (default
SITESPEED_OPTIONS: Configure any additional sitespeed.io options as required (default
nil). Refer to the sitespeed.io documentation for more details.
SITESPEED_DOCKER_OPTIONS: Configure any additional Docker options (default
nil). Refer to the Docker options documentation for more details.
For example, you can override the number of runs sitespeed.io makes on the given URL, and change the version:
SITESPEED_OPTIONS: -n 5
Configuring degradation threshold
You can configure the sensitivity of degradation alerts to avoid getting alerts for minor drops in metrics.
This is done by setting the
DEGRADATION_THRESHOLD CI/CD variable. In the example below, the alert only shows up
Total Score metric degrades by 5 points or more:
Performance testing on Review Apps
The above CI YAML configuration is great for testing against static environments, and it can be extended for dynamic environments, but a few extra steps are required:
browser_performancejob should run after the dynamic environment has started.
- In the
- Generate a URL list file with the dynamic URL.
- Save the file as an artifact, for example with
echo $CI_ENVIRONMENT_URL > environment_url.txtin your job's
- Pass the list as the URL environment variable (which can be a URL or a file containing URLs)
- You can now run the sitespeed.io container against the desired hostname and paths.
.gitlab-ci.yml file would look like:
- echo $CI_ENVIRONMENT_URL > environment_url.txt
- if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH
- if: $CI_COMMIT_BRANCH
