Observability for stage groups

Observability is about bringing visibility into a system to see and understand the state of each component, with context, to support performance tuning and debugging. To run a SaaS platform at scale, a rich and detailed observability platform is needed.

To make information available to stage groups, we are aggregating metrics by feature category and then show this information on dashboards tailored to the groups. Only metrics for the features built by the group are visible on their dashboards.

With a filtered view, groups can discover bugs and performance regressions that could otherwise be missed when viewing aggregated data.

For more specific information on dashboards, see:

Error budget

The error budget is calculated from the same Service Level Indicators (SLIs) that we use to monitor The 28-day availability number for a stage group is comparable to the monthly availability we calculate for, except it's scoped to the features of a group.

For more information about how we use error budgets, see the Engineering Error Budgets handbook page.

By default, the first row of panels on both dashboards shows the error budget for the stage group. This row shows how features owned by the group contribute to our overall availability.

The official budget is aggregated over the 28 days. You can see it on the stage group dashboard. The error budget detail dashboard allows customizing the range.

We show the information in two formats:

  • Availability: this number can be compared to overall availability target of 99.95% uptime.
  • Budget Spent: time over the past 28 days that features owned by the group have not been performing adequately.

The budget is calculated based on indicators per component. Each component can have two indicators:

  • Apdex: the rate of operations that performed adequately.

    The threshold for "performing adequately" is stored in our metrics catalog and depends on the service in question. For the Puma (Rails) component of the API, Git, and Web services, that threshold is 5 seconds when not opted in to the rails_request SLI.

    We've made this target configurable in this project. To customize the request Apdex, see Rails request SLIs. This new Apdex measurement is not part of the error budget until you opt in.

    For Sidekiq job execution, the threshold depends on the job urgency. It is currently 10 seconds for high-urgency jobs and 5 minutes for other jobs.

    Some stage groups might have more services. The thresholds for them are also in the metrics catalog.

  • Error rate: The rate of operations that had errors.

The calculation of the ratio happens as follows:

\frac {operations\_meeting\_apdex + (total\_operations - operations\_with\_errors)} {total\_apdex\_measurements + total\_operations}

Check where budget is being spent

Both the stage group dashboard and the error budget detail dashboard show panels to see where the error budget was spent. The stage group dashboard always shows a fixed 28 days. The error budget detail dashboard allows drilling down to the SLIs over time.

The row below the error budget row is collapsed by default. Expanding it shows which component and violation type had the most offending operations in the past 28 days.

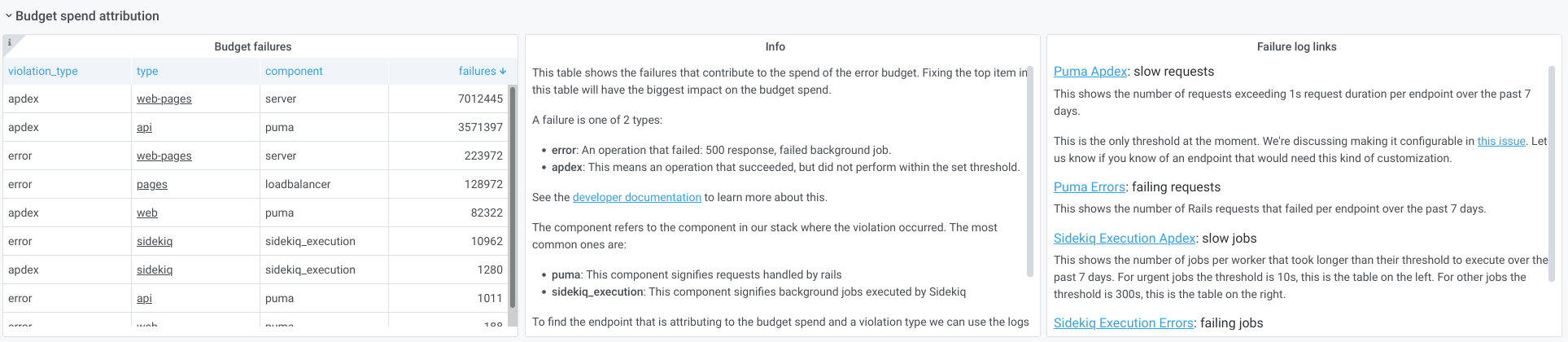

Error attribution

The first panel on the left shows a table with the number of errors per component. Digging into the first row in that table has the biggest impact on the budget spent.

Commonly, the components that spend most of the budget are Sidekiq or Puma. The panel in the center explains what different violation types mean and how to dig deeper in the logs.

The panel on the right provides links to Kibana that should reveal which endpoints or Sidekiq jobs are causing the errors.

To learn how to use these panels and logs for determining which Rails endpoints are slow, see the Error Budget Attribution for Purchase group video.

Other components visible in the table come from service-level indicators (SLIs) defined in the metrics catalog.

For those types of failures, you can follow the link to the service dashboard linked from the type column. The service dashboard contains a row specifically for the SLI that is causing the budget spent, with links to logs and a description of what the component means.

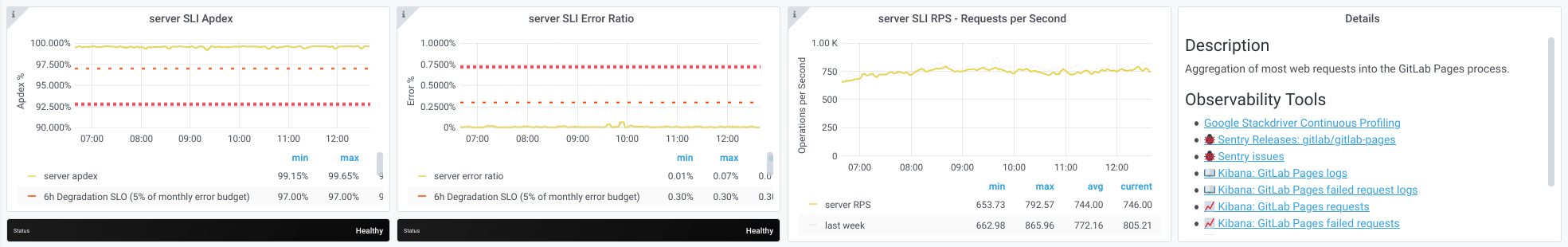

For example, see the server component of the web-pages service:

web-pages-server-component SLI

To add more SLIs tailored to specific features, you can use an Application SLI.

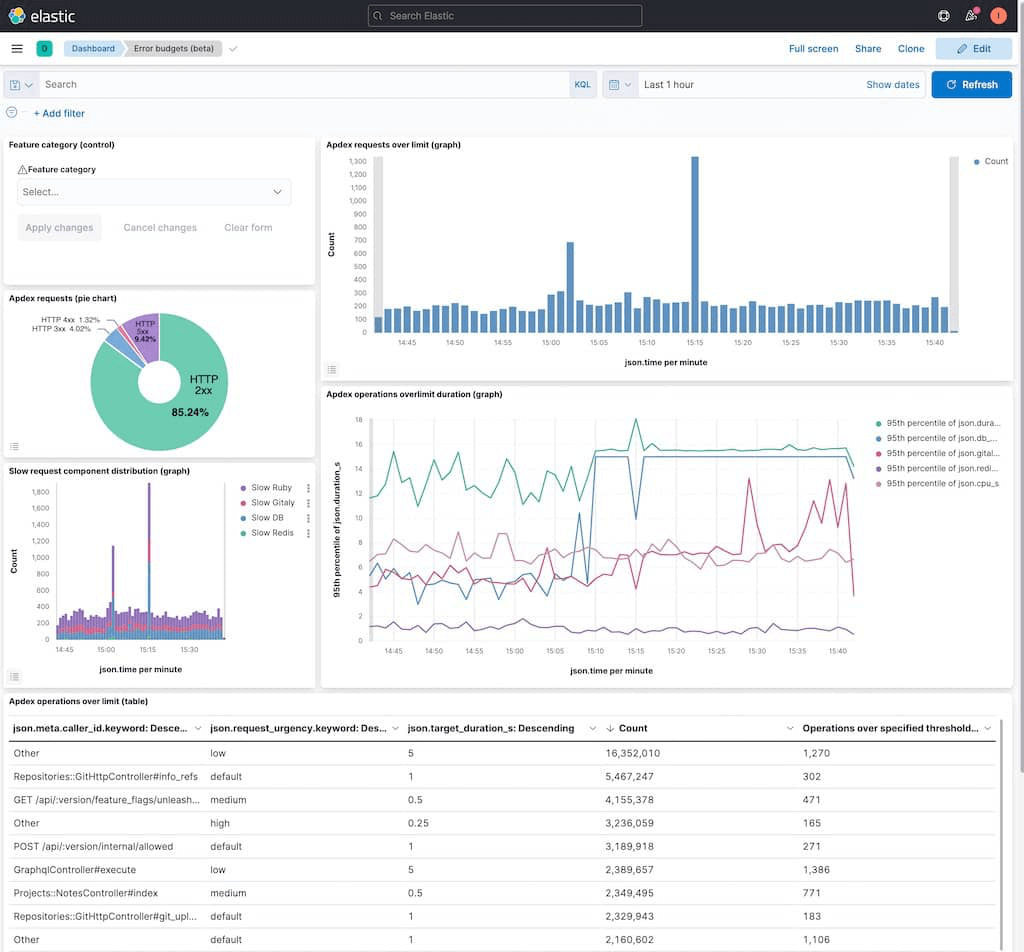

Kibana dashboard for error budgets

For a detailed analysis you can use a specialized Kibana dashboard, like this:

Kibana dashboard


  • Apdex requests over limit (graph) - Displays only requests that exceeded their target duration.
  • Apdex operations over-limit duration (graph) - Displays the distribution of duration components (database, Redis, Gitaly, and Rails app).
  • Apdex requests (pie chart) - Displays the percentage of 2xx, 3xx, 4xx and 5xx requests.
  • Slow request component distribution - Highlights the component responsible for Apdex violation.
  • Apdex operations over limit (table) - Displays a number of operations over limit for each endpoint.
  • Apdex requests over limit - Displays a list of individual requests responsible for Apdex violation.

Use the dashboard

  1. Select the feature category you want to investigate.
    1. Scroll to the Feature Category section. Enter the feature name.
    2. Select Apply changes. Selected results contain only requests related to this feature category.
  2. Select the time frame for the investigation.
  3. Review dashboard and pay attention to the type of failures.

Questions to answer:

  1. Does the failure pattern look like a spike? Or does it persist?
  2. Does the failure look related to a particular component? (database, Redis, ...)
  3. Does the failure affect a specific endpoint? Or is it system-wide?
  4. Does the failure appear caused by infrastructure incidents?
